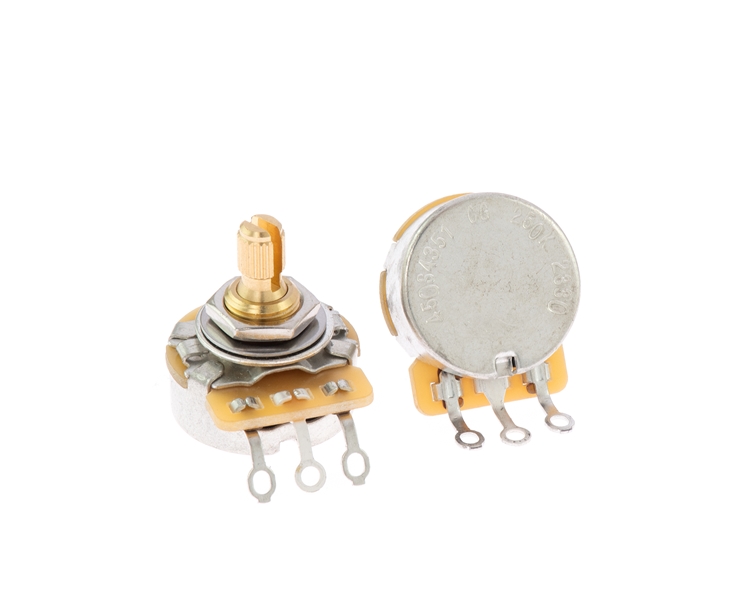

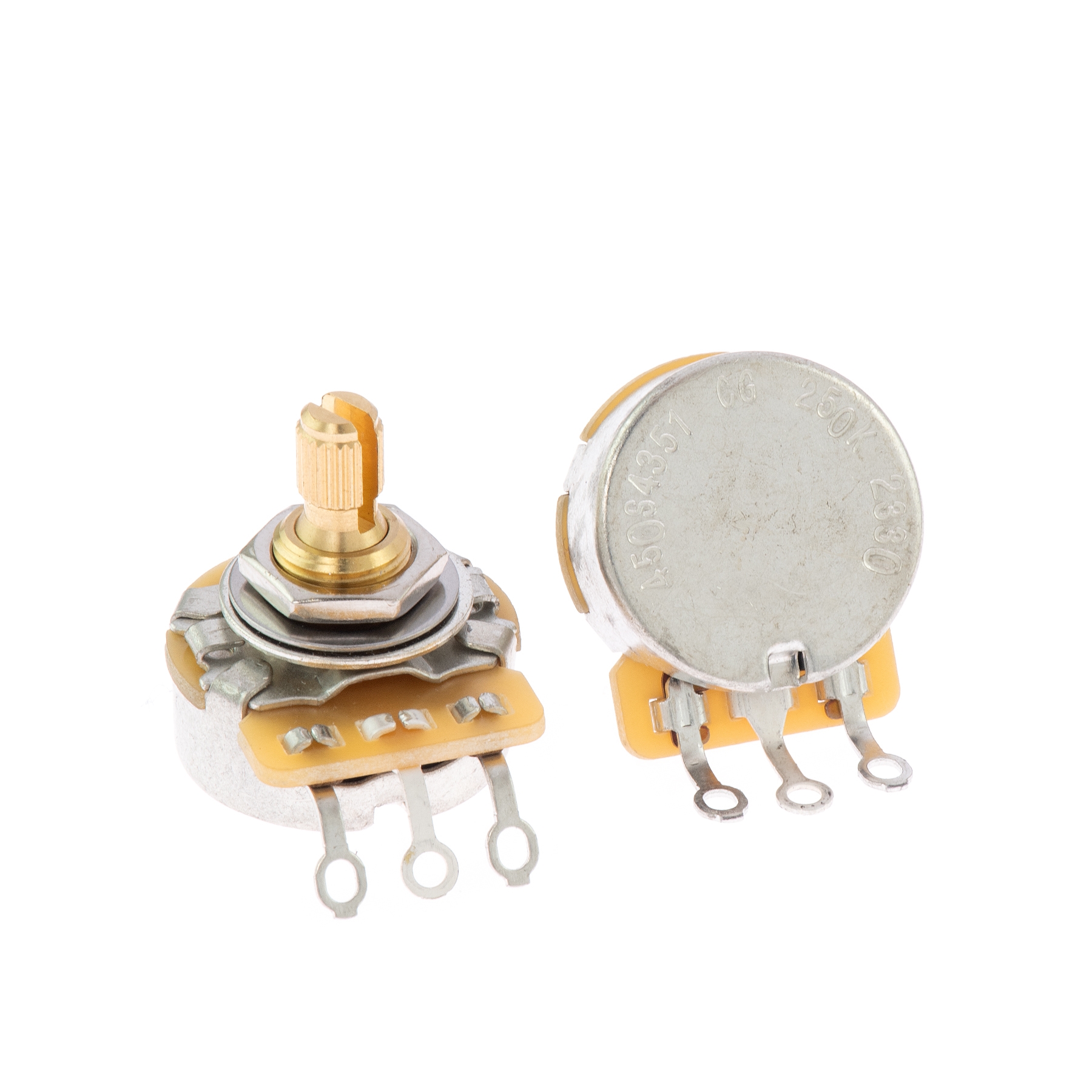

Made especially for Charles Guitars these 450 “CG” series CTS pots have a low tolerance that means our 250K pots are not below 250K.  They feature a solid brass thread and shaft on a Bakelite base plate with a lower turning torque for the right balance between a smoother response and some resistance.

We asked CTS to incorporate all the features that we have found over the years that guitar players want and the result is our “CG” potentiometers.

Features:

• 5% + - tolerance
• Solid Brass thread and shaft
• Bakelite base plate
• Lowest turning torque offered by CTS for an easier smoother more responsive control.
• Easy Solder
• Stainless Steel Dress Washer and Nickel Plated lock washer and nut

Specs:

• 24 spline
• USA Imperial size
• For 3/8” (9.5mm) hole
• Length of threaded shaft ~ 6mm
• Shaft diameter - 9.4mm
• Base of pot diameter - 23.8mm

Potentiometer Selection Table
