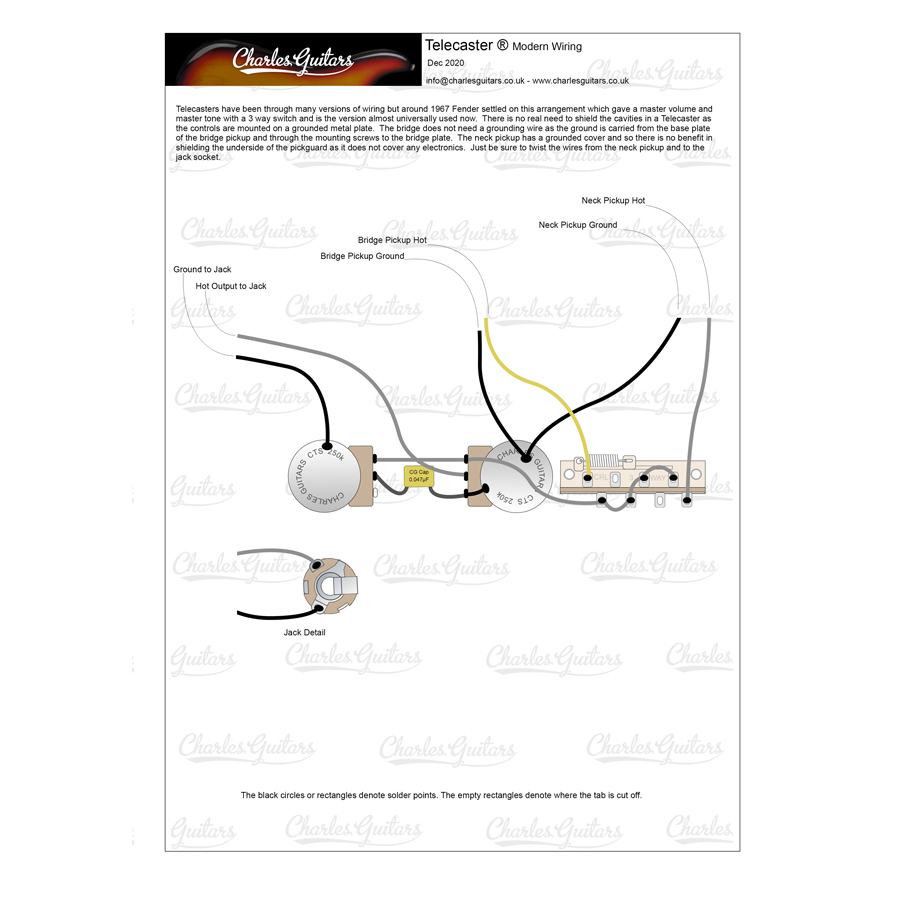

Telecasters have been through many versions of wiring but around 1967 Fender settled on this arrangement which gave a master volume and master tone with a 3 way switch and is the version almost universally used now.
Switch Positions:
1. Bridge.
2. Bridge and Neck in Parallel.
3. Neck.
Download Tele 3 Way Standard Wiring Diagram PDF
