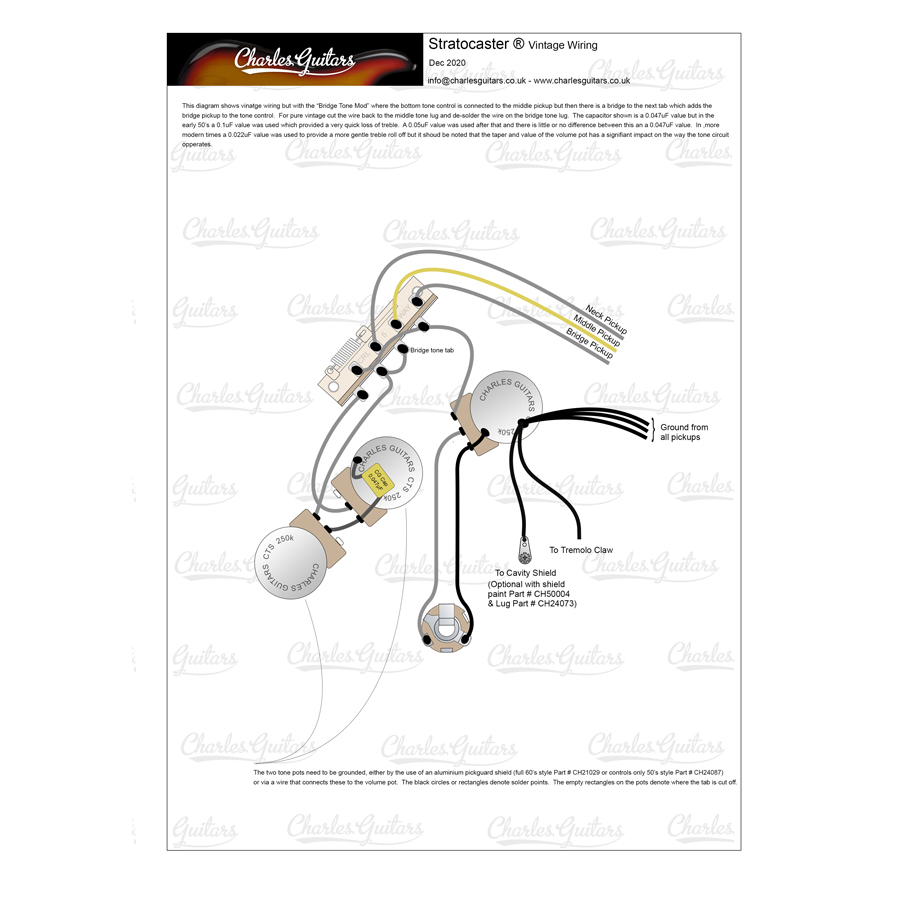

This is the standard 5 way Strat wiring that we all know and love with the optional bridge tone mod which connects the bottom tone control to the bridge pickup as well as the middle.
Switch Positions:
1. Bridge
2. Bridge and Middle
3. Middle
4. Middle and Neck
5. Neck
Download Strat 5 Way Standard Wiring Diagram PDF
